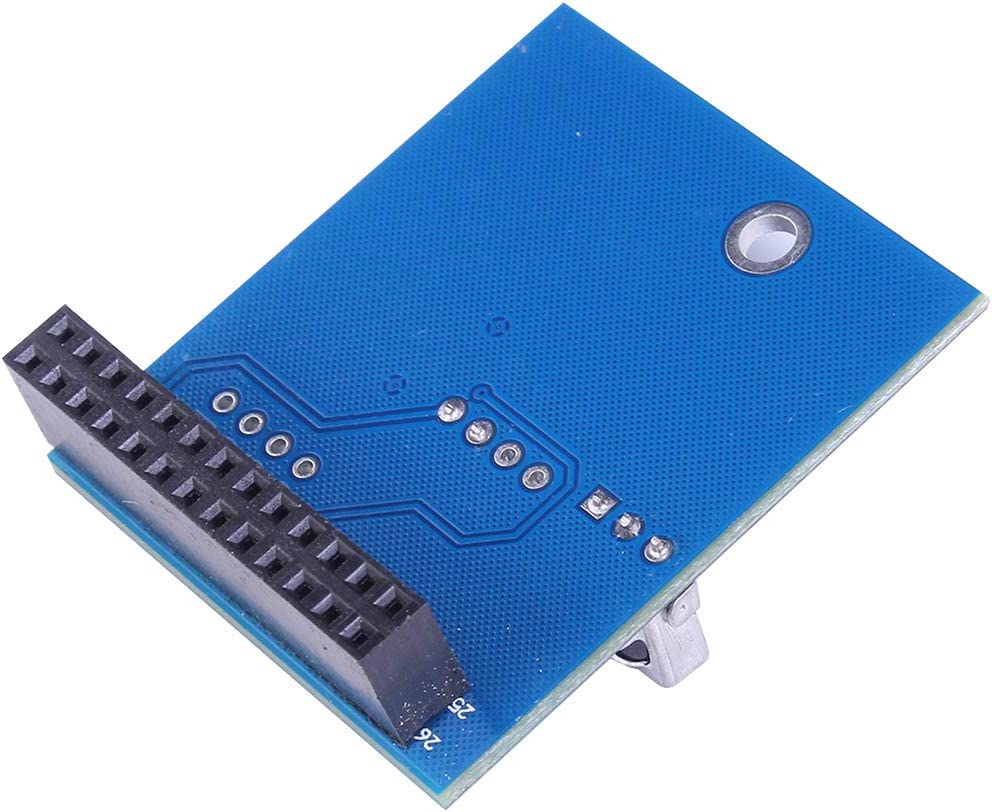

IR Transmitter Infrared Remote Hat Expansion Board 38KHz Transceiver Shield for Raspberry Pi RPi B+/2B/3B

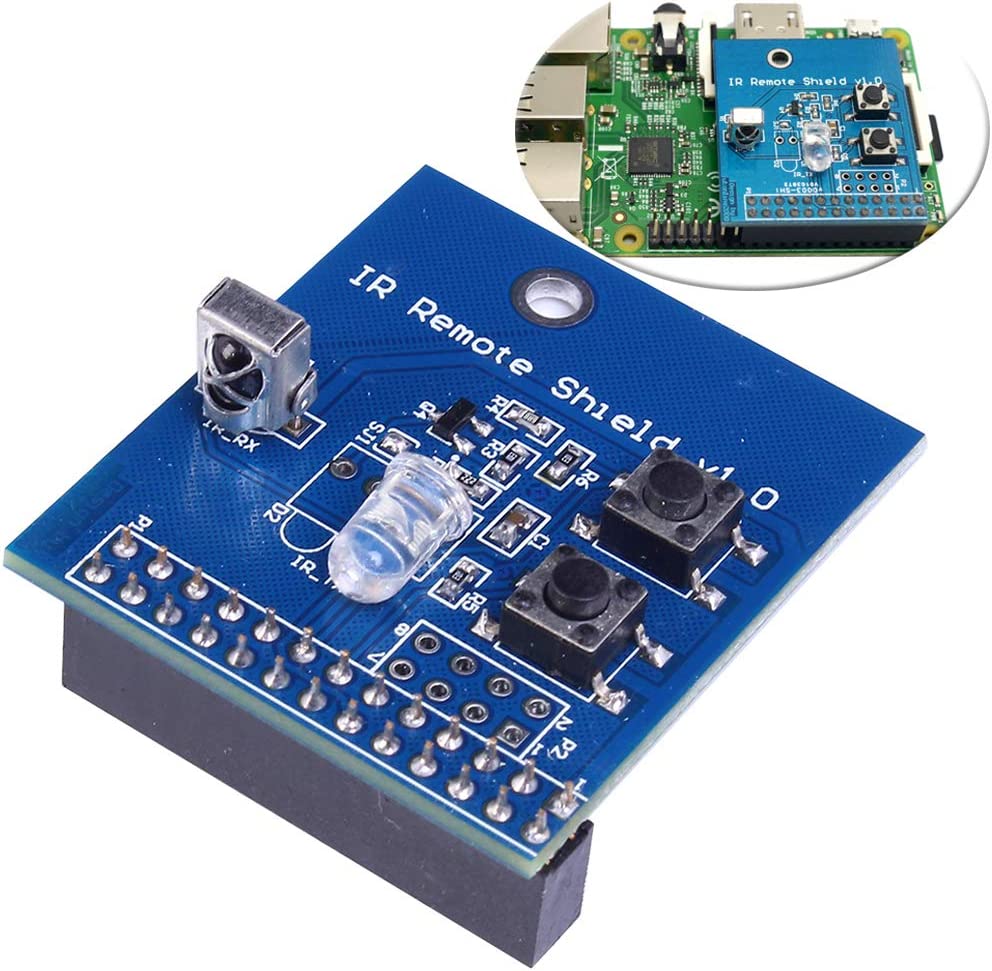

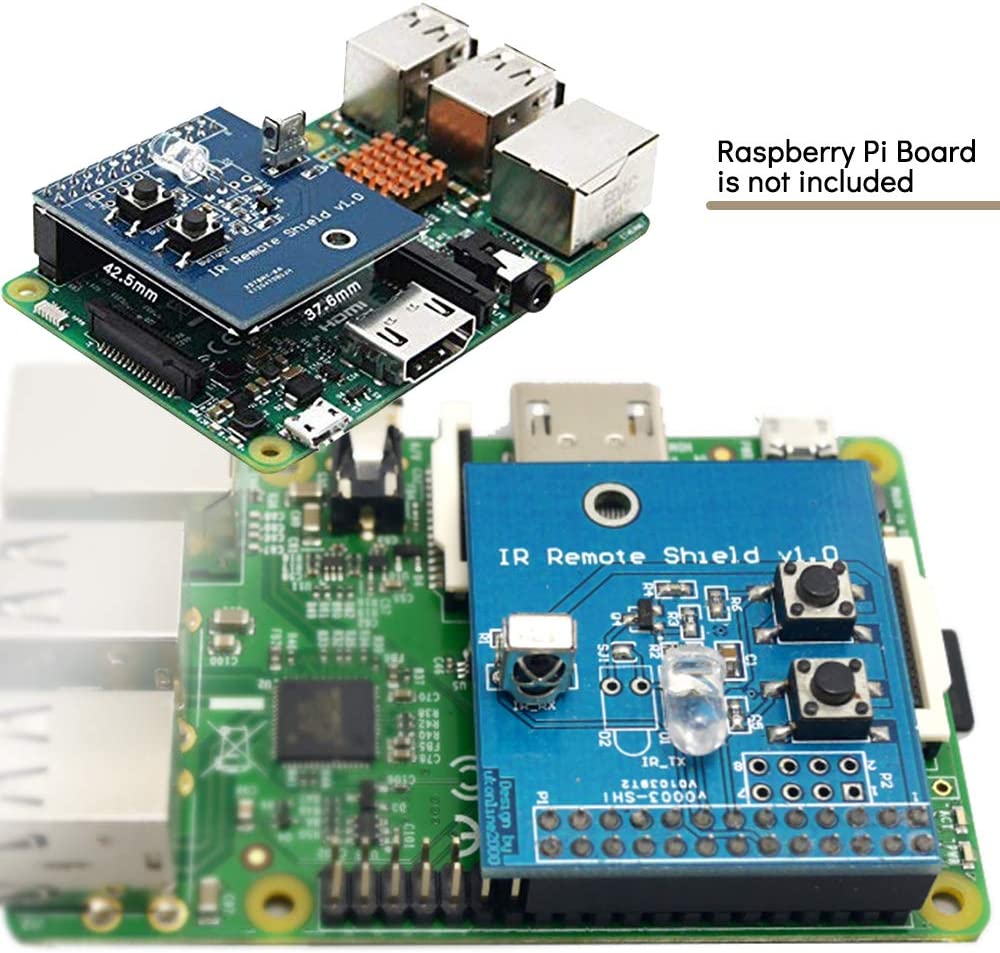

The IR transceiver expansion board/hat is a versatile accessory designed specifically for Raspberry Pi models 3 B+, 3B, 2B, and B+. It is equipped with both an IR transmitter and receiver diode, operating at the standard 38KHz frequency, making it compatible with a wide range of IR remote-controlled devices. This allows users to control TVs, LED strips, DVD players, and other IR systems directly from their Raspberry Pi.

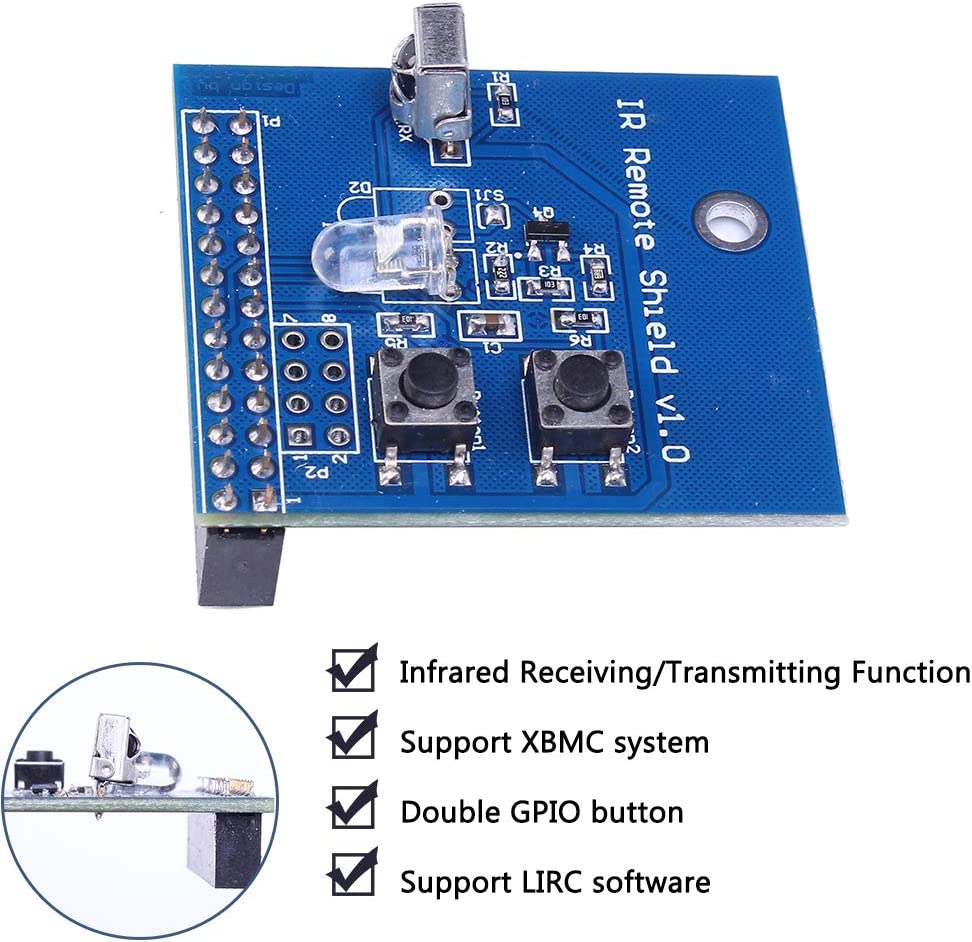

Key Features:

• Infrared Receiving Function:

  • Operating Frequency: 38KHz
  • Receiving Distance: 18-20m
  • Receiving Angle: +/-45 degree

• Infrared Transmitting Function:

  • Wave Length: 940nm
  • Transmitting Distance: 7-8m

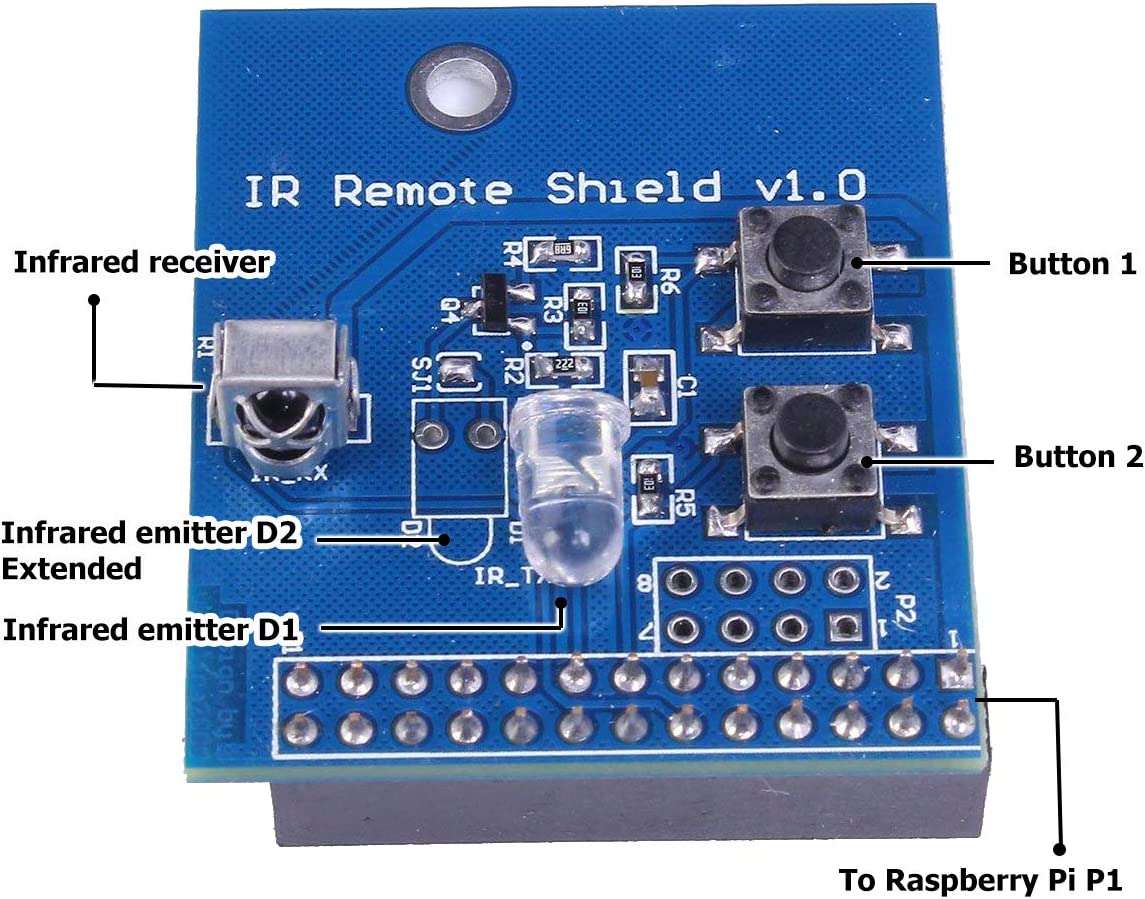

• Support for Infrared Dual LED Transmitting: The board allows for the addition of a second IR transmitter, enhancing its functionality (note: this requires installing an extra transmitter and disconnecting SJ1).

• LIRC Software Compatibility: The expansion board supports LIRC (Linux Infrared Remote Control) software, making it easy to control most home appliances.

• XBMC System Support: It is designed to work seamlessly with the XBMC system, allowing users to utilize the IR features within this environment.

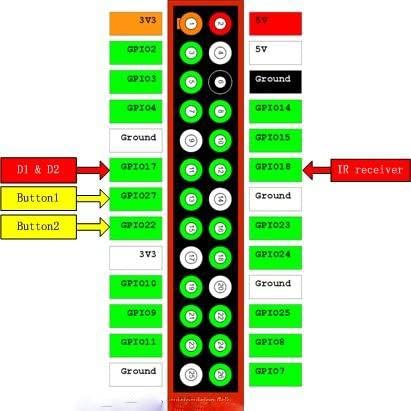

• Dual GPIO Button Support: Provides the ability for users to program the functions of two GPIO buttons, adding an extra layer of customization.

Package Contents:

• 1x IR Remote Expansion Board
